π® 2+ Motor

Today’s π 2+ motor is the epitome of π technology, reimagined, reconfigured and refined from tip to tail to deliver more benefits than ever before.



STN04 - Pi_Drive - 30sec

Features and benefits1-2

π 2+ is part of Signature 2 Portfolio, the comprehensive and customizable neurosurgical high speed drill platform.

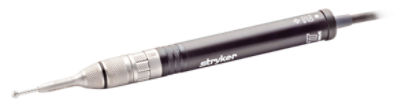

Stryker_Sig2_Shot-05_0427_FNL_1000px

Motor bearing grease has higher viscosity and max operating temperature (98.6°F increase; 350.6°F vs 284°F) (37ºC increase; 177ºC vs 140ºC)

29% decrease (3.3lbf) in attachment mean peak pullout force

Non-footed slam latch and release collar simplify use

Matte anodizing and drill coating reduce light reflection/glare off drill surface, reduce corrosion and preserve exterior marking 4+ years (minimum 400 cycles)

~ 50% reduction in sound energy

Up to 36% reduction in cable friction (CoF)

New, exclusive KnurLock grip technology

Drill tracker adapter provides future-ready design

Works with I.D. Touch software for custom drill response

75K RPM electric motor

*Compared to original π









π technology

Patented, industry-unique design

Magnets in “pie” configuration replace nonfunctioning steel core

Flat wiring encases core, not open loop wiring

Creates volumetric optimization to enhance performance while limiting housing size

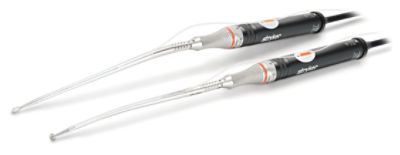

iBur integrated attachments

  • New lineup of single-use attachments with 15º distal or proximal bend
  • Integrated attachment, cutting accessory and irrigation
  • For MIS or other procedures
  • Reusable straight or angled hubs
  • Joins Elite, Footed, Heavy Duty and MIS as the fifth family of Signature 2 Portfolio attachments



CORE 2 Console with

I.D. Touch software

  • Universal control center across Signature components
  • Capable of running two drills simultaneously and irrigation
  • Industry-exclusive I.D. Touch software adjusts torque 0-100% for tailored drill response and tactile feel
  • Custom settings can be saved in user preferences





Resources and downloads

Signature 2 Spine brochure
Signature 2 Spine brochure
Signature 2 General brochure
Signature 2 General brochure
Signature 2 iBur brochure
Signature 2 iBur brochure
