Features & Benefits:

Volar Plating Options:

The VariAx Distal Radius anatomic volar plate is offered in narrow, intermediate and standard width options with a volar tilt designed to aid in anatomic reduction.  The intermediate plate is estimated to fit 83% of the patient population.  All widths offered in 49mm (3 hole), 56mm (4 hole), and 76 (7 hole) lengths.  Only 1 drill bit and 1 screwdriver blade is used for all sized screws and pegs.

Narrow anatomic volar plate

The anatomic volar plates adhere to the two-column fixation principle. The 2 pre-tilted radial styloid screw holes allow screws to capture radial styloid fragments. The watershed line design allows for enhanced buttressing of DRUJ and volar lunate facet.

Intermediate anatomic volar plate

The distal screw holes in the anatomic plates are angled to give a pre-determined screw pattern in the distal bone block. The image here shows the various trajectories. When drilling at a 0° angle relative to the plate hole, the screw trajectories shown here relative to the plate surface will be achieved. This is also the screw pattern achieved when using an aiming block.

Standard anatomic volar plate

The Universal Volar Plate is the non-anatomic volar plate option that still has a bend to help re-establish the volar tilt after fixating the plate.  All circular holes are capable of accepting locking and non-locking screws and pegs and have Smartlock Technology to allow for variable angled locking.

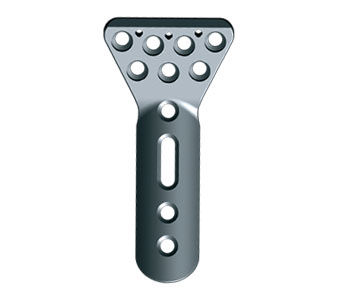

Universal volar plate

Dorsal Plating options:

Stryker's dorsal plate offering includes 2 widths (narrow and wide) for the standard dorsal plate that should be placed slightly proximal to the distal edge of the dorsal distal radius to avoid inserting screws/pegs into the joint. The fixed angled screw trajectory provides support to the subchondral surface and the distal portion of the plate is partially thickened to promote screw head protection within the 15 degree variable angle arc. The distal lateral aspect of the plate can be bent along the groove with bending pliers to better match patient anatomy.

Narrow dorsal DR plate, Wide dorsal DR plate

Stryker has also released, for the first time, a dorsal medial and dorsal lateral plating option.  The plates can be used independent of each other and sit on either side of Lister’s tubercle (medial plate on the medial side and the lateral plate on the lateral side.  The most distal end of the plates has K-wire holes for additional fixation and the plate tapers down to 0.75mm to stay low-profile as it gets closer to the articular surfaces.

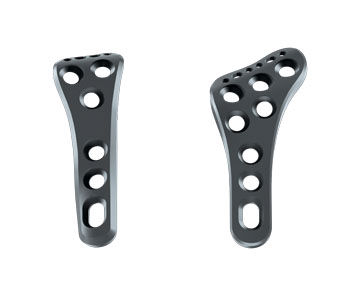

Dorsal Medial DR Plate, Dorsal Lateral DR Plate

Lateral Plating options:

The lateral plate's new design is based on SOMA-data for an improved anatomic fit and additional K-wire holes around the most distal hole for additional fixation options.

Lateral DR Plate

Volar Rim Plate:

Stryker’s volar rim plate should be placed above volar capsule on the volar ulnar corner. The vertical K-wire slots allow for distal or proximal adjustment and the horizontal K-wire slots allow for lateral or medial adjustment of the plate. The hooks and K-wires together help reduce the fracture and once stabilized the plate can be fully fixated using the proximal screw holes.

Volar Rim plate

Distal Ulna Plating Options:

The VariAx 2 DU Hook Plate is designed with a hook to grab very small styloid fragments which cannot be fixed with screws. The DU Base Plate has more screw options distally by placing the screw holes in a zig-zag cluster for metaphyseal fracture fixation. The DU Base Plate also comes in left and right sided options. All of the Distal Ulna plates are available in short and long plate options and have been designed with an oblong hole that can be used to compress if it’s desired.

Please refer to the optech for more information.

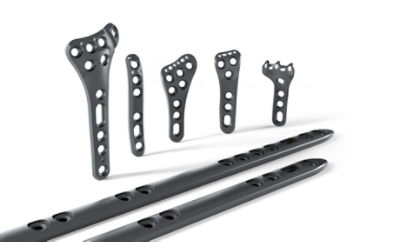

DU Hook Plate, DU Base Plate

XXL Plating Options:

There are sixteen additional plates in 73.8mm (5 hole), 100mm (8 hole),145mm (11 hole) and 189mm (15 hole) lengths and Standard and narrow widths in left and right anatomic shapes. These plates are pre-contoured design to fit the radial bow. The stronger plate design includes a smooth transition from 2 to 3mm at the meta-diaphyseal intersection of the plate and the pre-angled and Z-shaped screw hole configuration in the shaft. The Higher profile plate design allows for stronger fixation in osteotomies, mal-unions and non-unions.

Please refer to the optech for more information.

VariAx 2 Distal Radius XXL Plate

Screw and Peg Options:

The VariAx 2 screws allow for ±15 degrees of angulation. A lip on the drill sleeve will engage and allow toggling in the hole. The range in which the drill guide toggles will create a 30-degree cone and every angle in  this range will be a locking position. This may allow the surgeon to aim where the screw / peg should be placed. Also, depending on the placement of the plate, there may be a need to angle a screw/ peg out of the fracture line. The 2.0mm drill guide for T8 Screws facilitates drilling a 2.0mm pilot hole for a 2.4 or 2.7mm T8 screw or a 2.0mm peg centrically for locking or non-locking screws.

VariAx 2 Dedicated Wrist Tray Overview

The Platform:

The VariAx 2 Platform is designed to offer a comprehensive, modular and easy-to-use platform for treating various small fragment indications including clavicle, humerus, radius, ulna, fibula, fore-/mid and hind foot.

• Core tray includes one set of T8/T10 screws plus standardized instrumentation and reduction instruments across various small fragment indications
• Indication based add-on trays provides comprehensive range of plates & specialty instruments for each small fragment indication
• Color coded screws and instruments designed to easily identify screw diameter, screw type and corresponding instrumentation. A black laser marking on the screw head indicates a locking screw.
